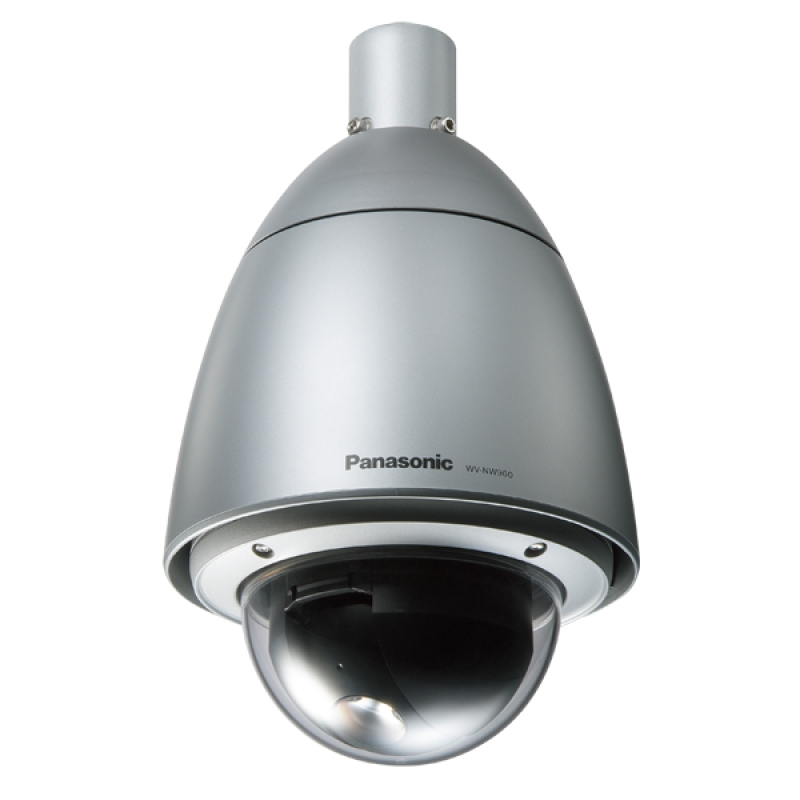

Super Dynamic III Weather Resistant Dome Camera WV-CW970 Series (Advanced Auto Track)WV-CW960 Series WV-CW974 (24 V AC) WV-CW964 (24 V AC) WV-CW970 (220 ~ 240 V AC) WV-CW960 (220 ~ 240 V AC) WV-CW974 (24 V AC) WV-CW964 (24 V AC) Key Features
• Super Dynamic III technology delivers 128x (NTSC) / 160x (PAL)
wider dynamic range compared to conventional cameras.
• High resolution: 540 TV lines typical / 520 TV lines minimum (Color HIGH mode)
480 TV lines minimum (Color NORMAL mode), 570TV lines minimum (B/W mode)
• High sensitivity with Day-Night function: 0.5 lux (Color) at F1.4 (WIDE), 0.04 lux (B/W) at F1.4 (WIDE).
IR cut filter switches on and off to ensure optimal picture quality in both color and B/W.
• Adaptive Digital Noise Reduction: 2D-DNR and 3D-DNR integration ensures reduced noise in various conditions.
• Electronic sensitivity enhancement Auto (Up to 32x), Manual (Up to 32x).
• Electronic shutter from 1/100 (NTSC), 1/120 (PAL) to 1/10,000 sec.
• 30x zoom lens: 3.8mm ~ 114mm (approx. 300x with digital zoom)
• Panning speed of max. 400°/s at preset mode and 0.065°/s super fine control at manual mode.
• 5 degrees upper view for various applications
• 256 preset positions that can be activated from the system controller
with a switcher or recorder (specific models).
• Auto tracking: The camera follows the largest movement in the image automatically. The camera will pan and tilt to keep the subject in the center of the image.
Built-in Video Motion Detector with Sensitivity 256 steps, Mask 8 x 6 areas
• Scene Change Detection alarms when lens is covered, spray painted, removed or defocused.
• Four alarm inputs and two outputs terminals.
• Alarm actions include Terminal output, Camera positioning, Auto pan, Patrol, SEQ, Sort, Auto track, B/W and command output.
• Auto image stabilizer for applications where vibration or wind is a concern.
